・Antenna moving tableWe manufacture custom products.
Please
contact us with questions and for quotation.
| specification |
| Size |
1000 × 1000 × 1500mm |
| Weight |
120kg |
| Stroke |
400mm |
| Rotational speed |
±150° |
| Position accuracy |
0.5mm |

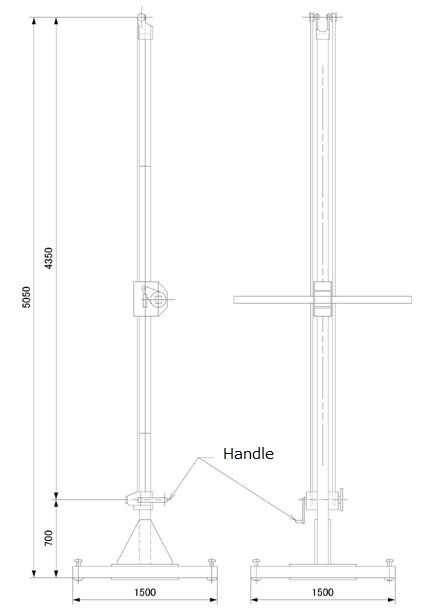

・Portable sensor elevatorWe manufacture custom products.
Please
contact us with questions and for quotation.
| specification |
| Maximum loading load |
5kg |
| Weight |
40kg |
| Drive system |
Timing belt & timing pulley |
| Vertical axis movement distance |
800 ～ 4800mm |
| Minimum scale on the vertical axis |
10mm |
| Horizontal axis movement rotation angle |
0 ～ 90° |
| Minimum scale on the horizontal axis |
5° |
| Minimum length at disassembly |
1500mm |
